  1. The Maps Viewer is installed on all VMs Book a virtual image processing machine virtual machines
    • The Maps Viewer is installed on all VMs

    • Book a virtual image processing machine

    • virtual machines

    • Open the virtual image processing machine

    • Go to your project to the folder Raw_Data

    • choose your experiment number and open the folder

    • Open the project with a double mouse click on Project.mapsxml

  2. If this warning appears always click on "Update History"
    • If this warning appears always click on "Update History"

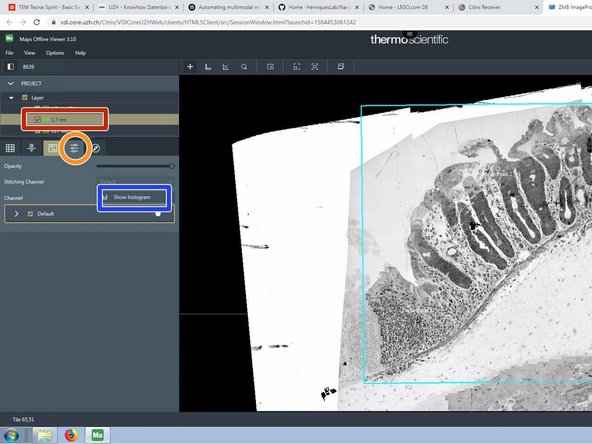

  3. Data area organized in layers and tilesets. The active objects are highlighted. Imaging settings organized in different tabs. Tools

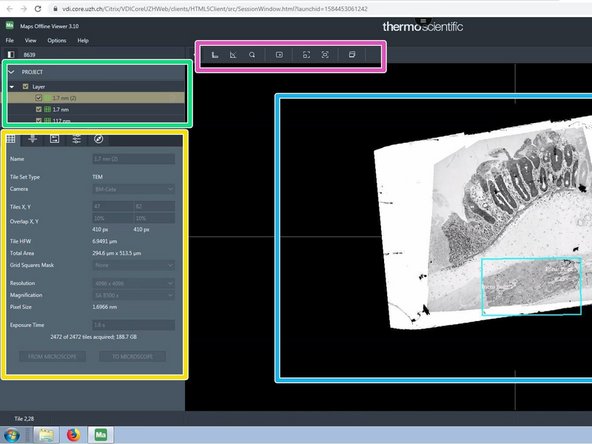

    • Data area organized in layers and tilesets. The active objects are highlighted.

    • Imaging settings organized in different tabs.

    • Tools

    • Viewer

    • choose the tileset you want to adjust

    • Click on the Tab "visualization"

    • "Show histogram"

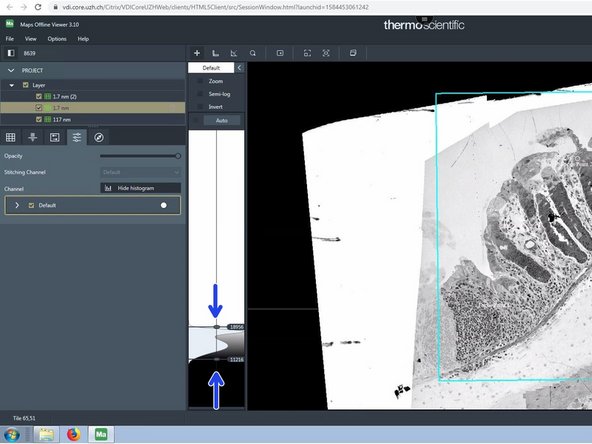

    • adjust the upper and the lower threshold for the histogram

    • Navigate intuitively in your data

    • Annotate regions of interest

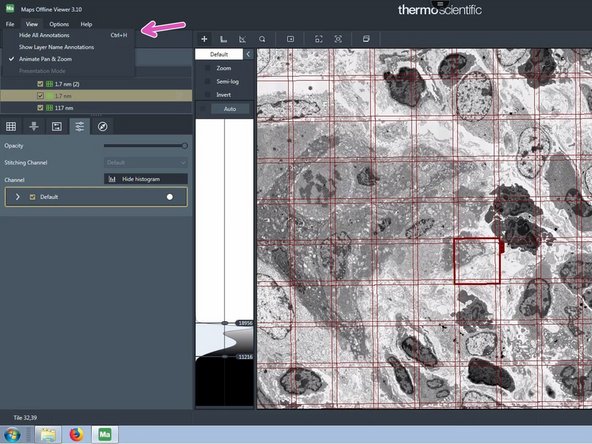

  4. Go to "View", "hide all annotations" to hide the grid bars and annotations. This can also be done with the Keyboard shortcut Ctrl + h These tools measure distances and angles
    • Go to "View", "hide all annotations" to hide the grid bars and annotations.

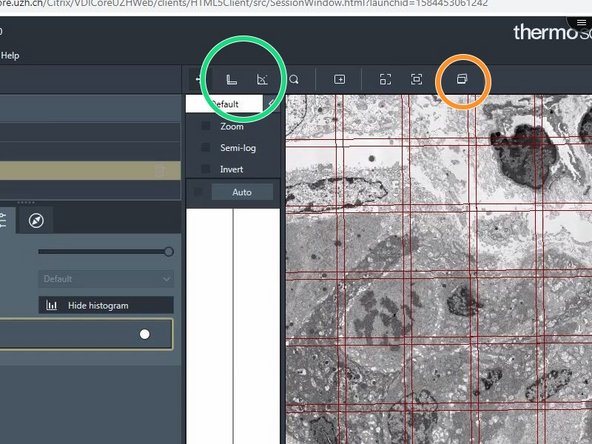

    • This can also be done with the Keyboard shortcut Ctrl + h

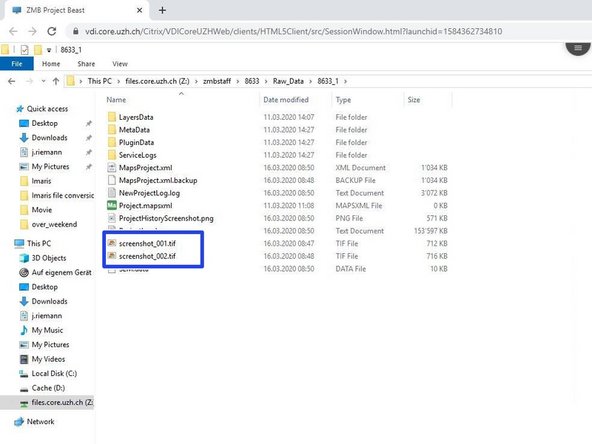

    • These tools measure distances and angles

    • Use this tool to make screenshots

    • The screenshots are saved in the Maps project base folder

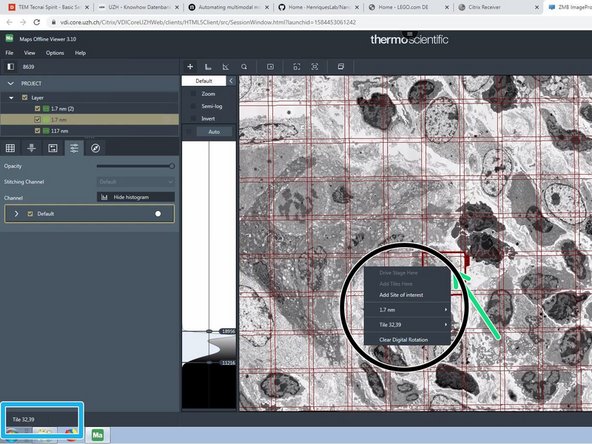

  5. Click on a single tile in  a tileset. In the lower left corner the tile coordinate/ name is shown. Right click on the tile to get more options.
    • Click on a single tile in a tileset.

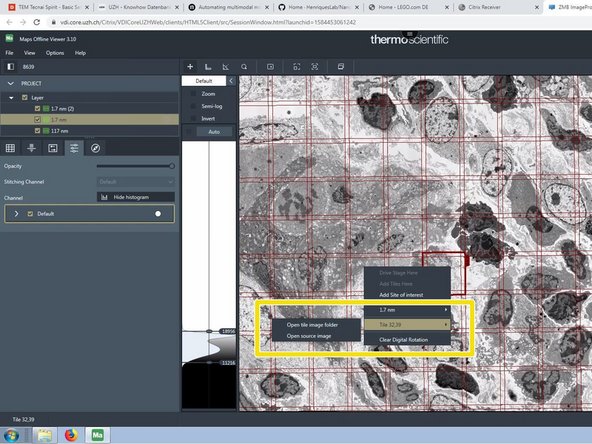

    • In the lower left corner the tile coordinate/ name is shown.

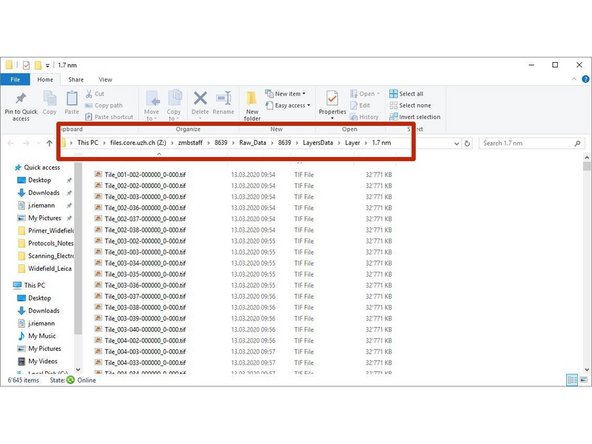

    • Right click on the tile to get more options.

    • Go for the tile and choose the option " open tile image folder, if you want access to the raw data.

    • The file explorer opens the folder with the raw .tif images.

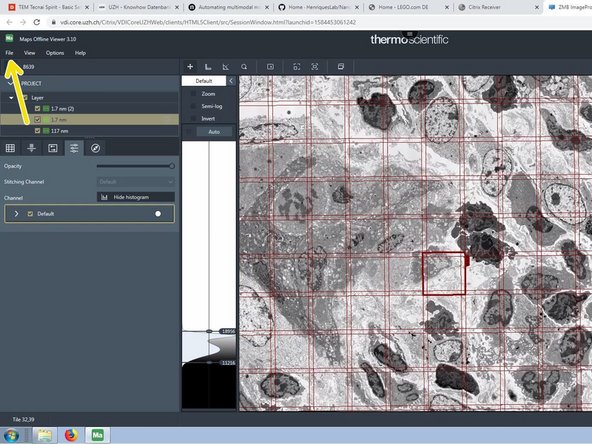

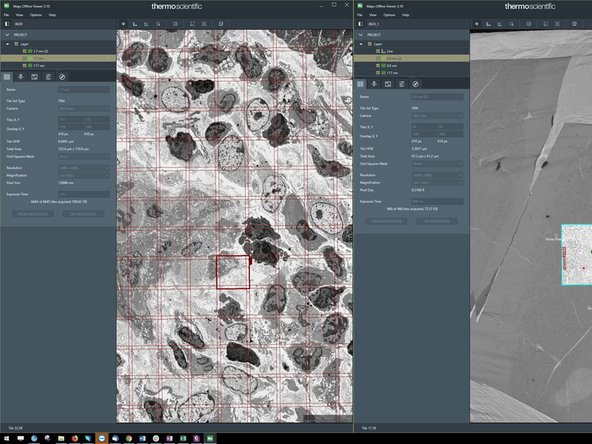

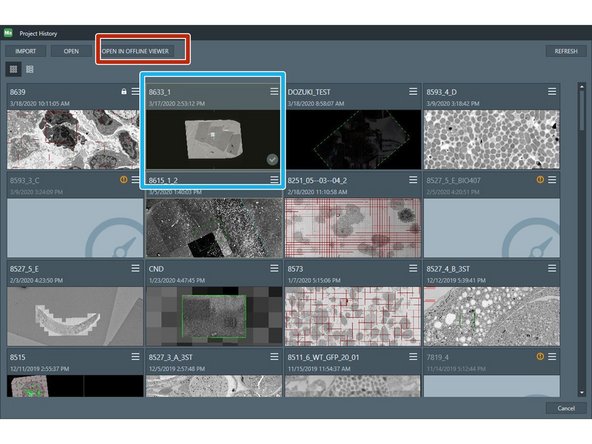

  6. Maps can only open projects in a second window, that have already been opened before. Go to "FIle" -> "open" Choose a second project from the list of projects, that you opened before
    • Maps can only open projects in a second window, that have already been opened before.

    • Go to "FIle" -> "open"

    • Choose a second project from the list of projects, that you opened before

    • Choose open in offline Viewer

    • Maps opens a second window with the chosen project

    • The program can be closed without saving. Every change is automatically saved.
