pressurized nitrogen tank with liquid nitrogen (≥ 0.5 bar pressure)
-

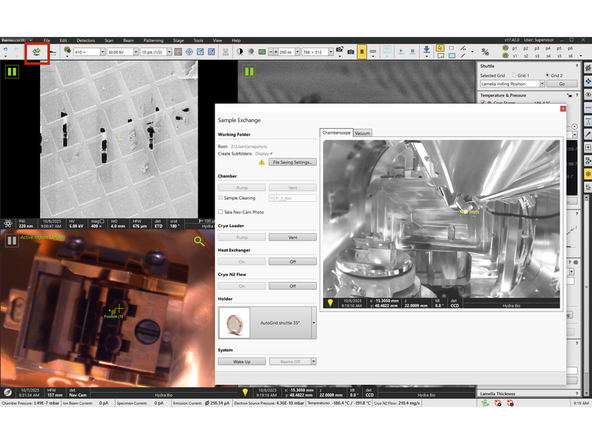

flushed nitrogen lines in the heat exchanger (20 mins, 200-250 mg/s nitrogen gas flow)
-
-
-
Attach solenoid valve (blue rectangle) to the nitrogen tank using the orange labelled screw.
-
Keep the manual valve on the tank closed!
-
Switch on electricity on the extension cord and wait until the system beeps (ca. 10 sec).
-
Reset solenoid valve with “VALVE – TEST” button and wait until it beeps (ca. 10 sec)
-
-
-
Open manual valve on the pressurized tank.
-
Place heat exchanger carefully in the nitrogen dewar.
-
Try not to touch the temperature sensors on the rod or the nitrogen inlet.
-
If you need to adjust the heat exchanger in the dewar, please move it ONLY along the yellow marked axis. Avoid touching the sensors (red) or the nitrogen inlet (blue).
-
-
-
After 30 mins the stage reaches its final temperature.
-
The time and temperature thresholds are stored, but before your session, please check, if the values are correct:
-
TIME = 7 mins, MIN-sensor threshold = -192°C, MAX-sensor threshold= -192°C
-
The temperature sensors are set to have ±1°C buffer, for potential temperature fluctuations. The MIN-sensor will trigger filling at -189°C and the MAX-sensor will close the valve at -194°C, with the above written thresholds.
-
When will the valve close? The solenoid valve closes if either the MAX-sensor's temperature threshold is reached (-192°C) or if the timer runs out (7 mins).
-
Why is high tank pressure important? At lower nitrogen tank over-pressure (<70kPa), you may increase the timer to 12 mins by turning the blue arrow clockwise to 12.
-
-
-
Close manual valve on the pressurized nitrogen tank.
-
Switch off the electricity.
-
Carefully remove heat exchanger from the nitrogen dewar.
-
Close dewar with the cap.
-
Let the nitrogen flow for 2 hours, to flush the nitrogen lines and avoid ice build-up.
-
Switch off gas flow on the Hydra until further use.
-
-
-
Close the manual valve on the tank.
-
Unscrew only the closest nut to the manual valve.
-
Please DO NOT screw the other nuts to avoid damaging the solenoid valve
-
Gently place the solenoid valve on the floor.
-
Release pressure from the tank, and exchange empty tank for the full one at UZH-Warenannahme.
-
Note: the tanks has one more fill left in it, when the level reaches the marked green line.
-
-
-

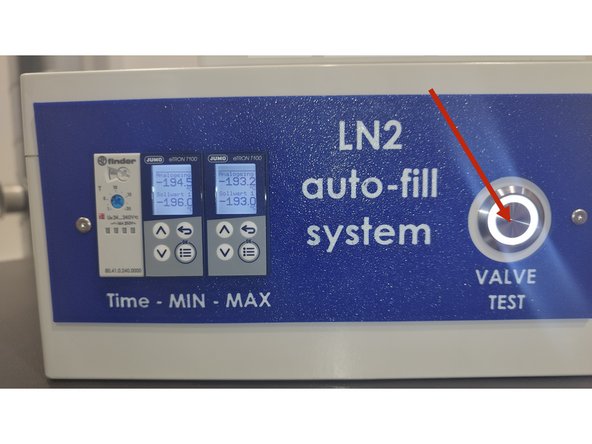

Before exchanging and refilling the pressurized nitrogen tank, it is recommended to completely fill the nitrogen dewar. A full dewar lasts ca. 20 hours.
-
On the MIN temperature control unit, press the down arrow once. The threshold value starts to blink.
-
Using the arrows, adjust the temperature threshold value to e.g. -196°C.
-
Confirm temperature threshold change with the OK button.
-
The new threshold should be below the current temperature. E.g. -194.5°C > -196°C. This will trigger the solenoid valve to open.
-
After the nitrogen dewar is filled, reset the MIN temperature threshold back to -192°C!!!
-
