Nikon Ti2-E (Irchel) - Swap TRITC ↔ mCherry Excitation Filter on the Lumencor SPECTRA X

Written By: z mbstaff (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

00:02:00

Sections

1

Flags

0

  1. Locate the Lumencore SPECTRA X light source bellow the monitor. Locate alternative filter-set. Open top cover on SPECTRA X light source.

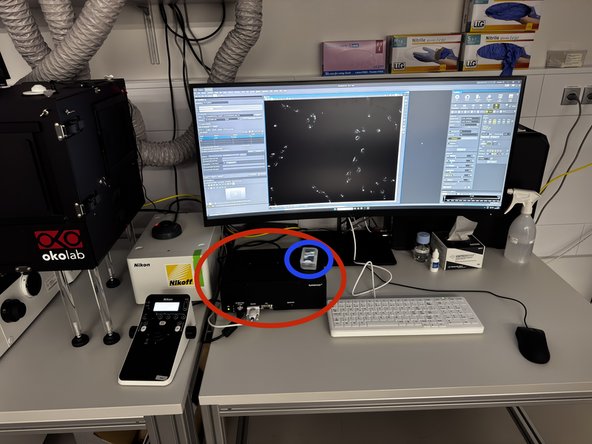

    • Locate the Lumencore SPECTRA X light source bellow the monitor.

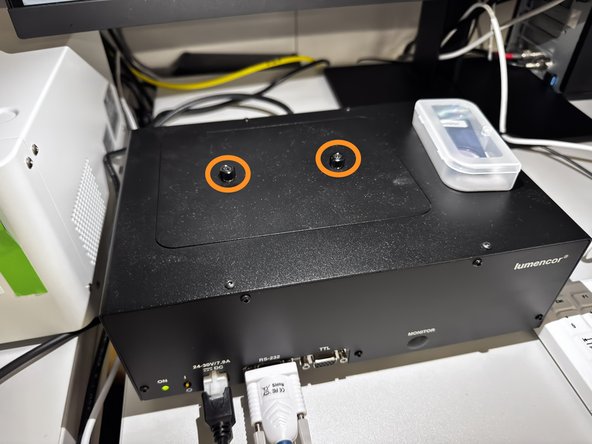

    • Locate alternative filter-set.

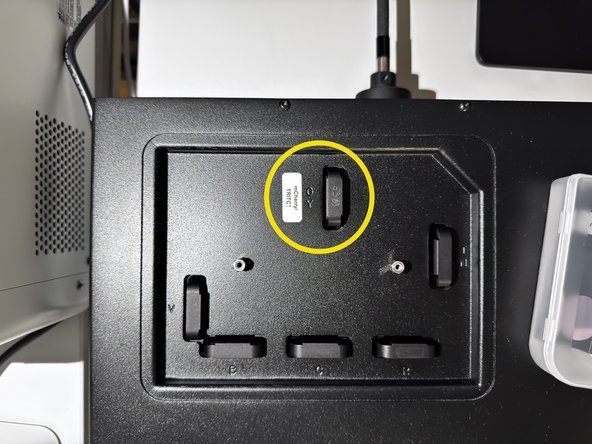

    • Open top cover on SPECTRA X light source.

    • Make sure that there that "Live" is not active in NIS Elements.

    • Locate “TRITC/mCherry” filter slot.

  2. Remove current holder. Insert new holder: verify label/orientation, slide into G until it clicks. Close cover.

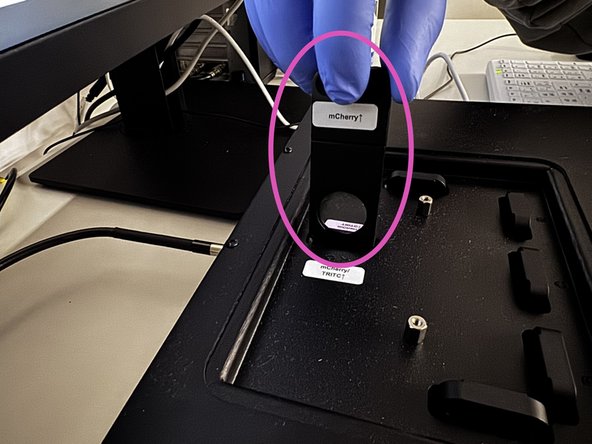

    • Remove current holder.

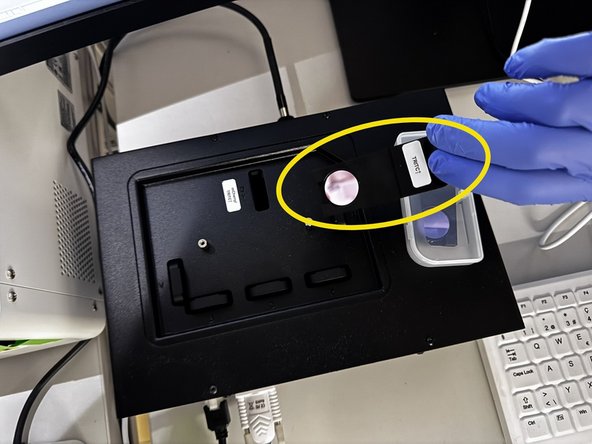

    • Insert new holder: verify label/orientation, slide into G until it clicks.

    • Close cover.

  3. Open Lumencore Configurations. In NIS Elements change the SPECTRA X line accordingly (to have correct meta data). If TRITC inserted: write here 555 for correct metadata

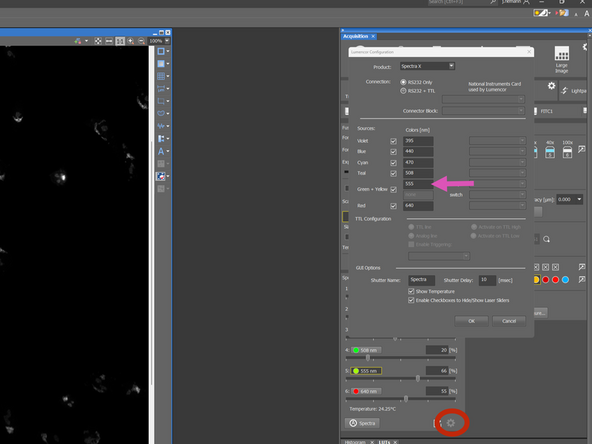

    • Open Lumencore Configurations.

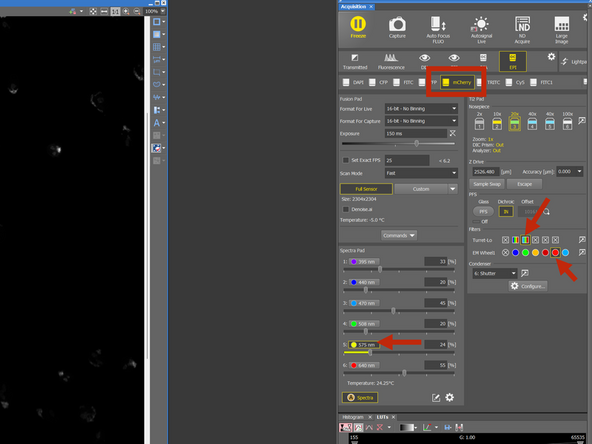

    • In NIS Elements change the SPECTRA X line accordingly (to have correct meta data).

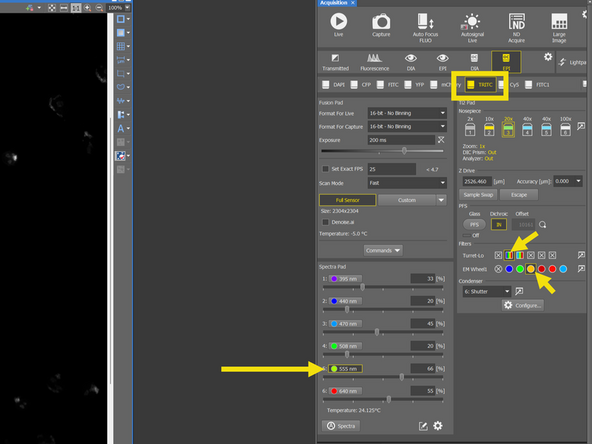

    • If TRITC inserted: write here 555 for correct metadata

    • If mCherry inserted: write here 575 for correct metadata

    • TRITC Filter inserted: SPECTRA X line: 555 nm

    • mCherry Filter inserted: SPECTRA X line: 575 nm
