Cellpose

Written By: Joana Raquel Delgado Martins (and one other contributor)

Comments: 0
Favorites: 0

Difficulty

Moderate

Steps

Time Required

Suggest a time??

Introduction

3D segmentation

Tiffs with multiple planes and multiple channels are supported in the GUI (can drag-and-drop tiffs) and supported when running in a notebook. Multiplane images should be of shape nplanes x channels x nY x nX or as nplanes x nY x nX. You can test this by running in python

Step 1 Cellpose

Reserve and open a ZMB special B VM.
Search for and open "Anaconda Powershell Prompt (MinicondaZMB)" via the start button.

Step 2

Check if the "zmb_cellpose" environment is available:

Check if the "zmb_cellpose" environment is available:
conda info --envs
Contact the ZMB staff, if the environment is not listed.
Activate the enviroment:
conda activate zmb_cellpose
Sometimes, an error-message appears (see image). This particular message can be ignored.
The environment was activated successfully, if it is listed at the start of the line.

Step 3

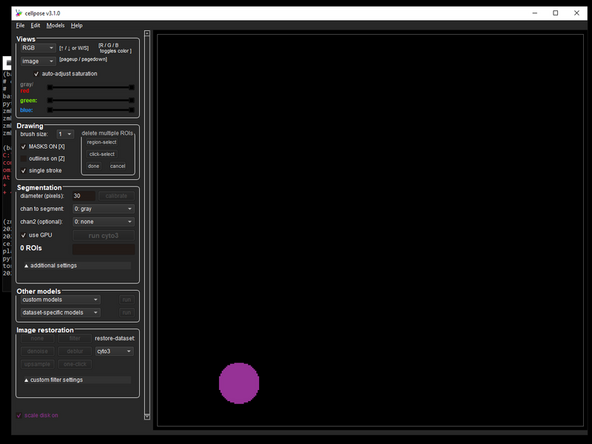

Call Cellpose GUI
cellpose
You are good to go! Start using cellpose.
More info and detailed instructions can be found here.

Step 4

For best accuracy and runtime performance, resize images so cells are less than 100 pixels across
For multi-channel, multi-Z tiff’s, the expected format is Z x channels x Ly x Lx
CHAN TO SEG: this is the channel in which the cytoplasm or nuclei exist
CHAN2 (OPT): if cytoplasm model is chosen, then choose the nuclear channel for this option
